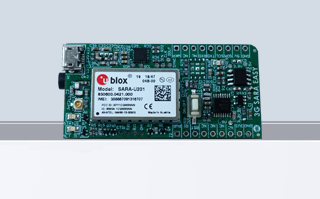

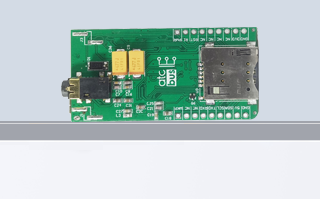

3G SARA EASY

6799 Views
- Support ATCBus for expansion aplication.
- UMTS bands: 800, 850, 900, 1900, 2100 Mhz
- Data rates: 7.2 Mbit/s DL, 5.76 Mbit/s UL
- GSM bands:Quad-band
- Interface: UART and IOs via ATCBus, USB, Digital audio
- Feature: Dual stack IPv4/IPv6,Embedded FTP/HTTP/SMTP, Embedded SSL,Embedded TCP/UDP..
- Size: 28x56.5 mm
- Markets:Automotive & Transport, Industry, Wearables, Smart Cities, Healthcare, Retail, Smart Home & Buildings

View Detail

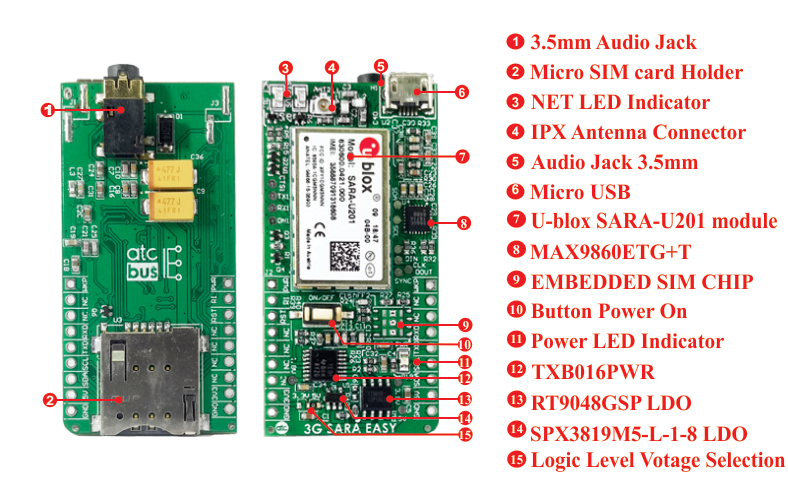

1. Introduction of GSM/GPRS ATC-E06

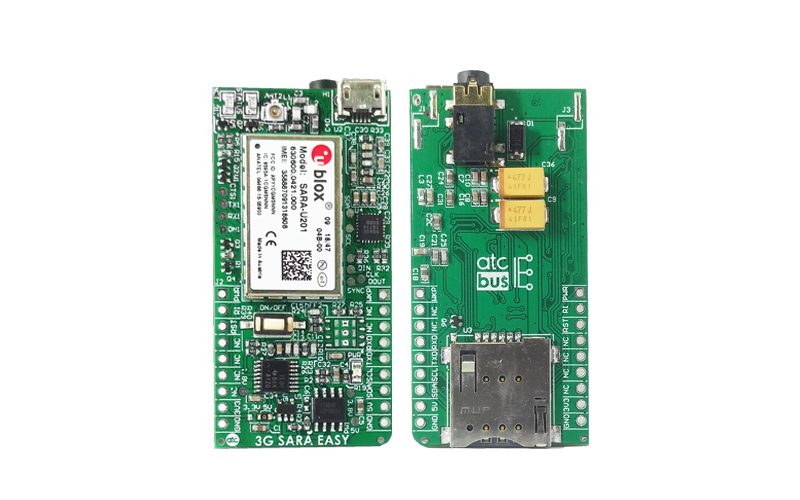

ATC-E06 Easy is a product designed by AT-COM to provide users with integrated facilities that are interconnected into a network through ATCBus.

The SARA-U201 module is the latest 3G/2G series, delivering optimum performance in SMS, data and voice communications even in harsh environments. The ATC-E06 is full of features to provide you with ideas for wireless-based applications.

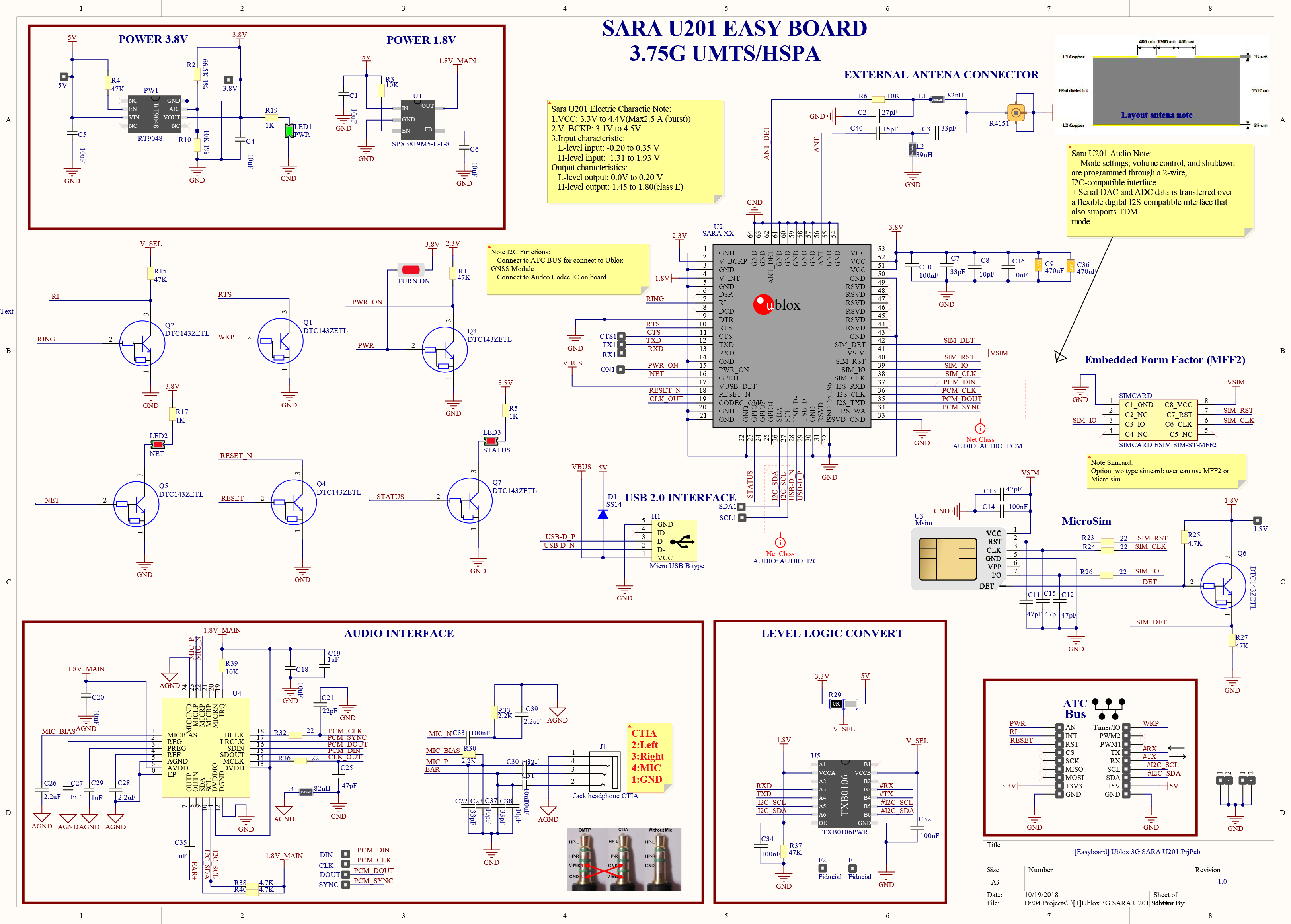

2.  Schematic design

 3. Feature of GSM/GPRS ATCE-06

a. Module ATCE-06.

The U-blox SARA-U201 integrates 3G's advanced technologies into ATC-E06 module. The ATC-E06 module is product line with 3G technology and back ward to 2G capabilities. The Ublox SARA-U201 can connect to the Ublox GNSS module via the SCL and SDA pins of the ATC-BUS.

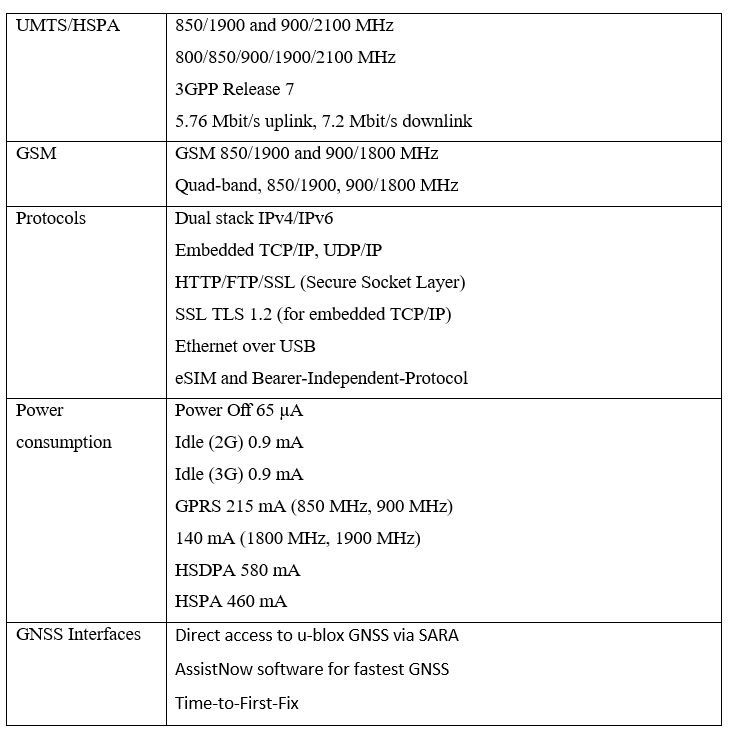

Some feature of module U-blox-SARA U201:

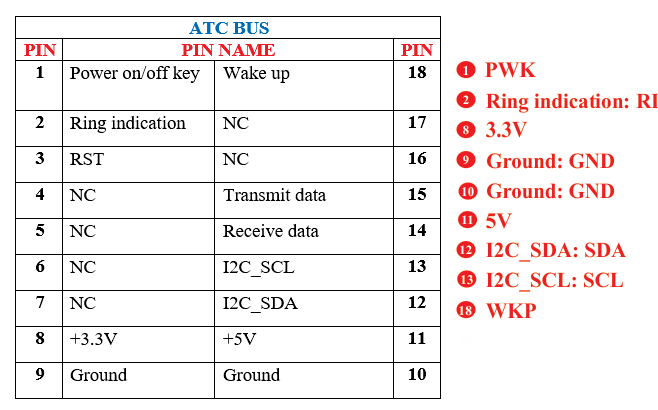

The ATCBus Socket integrate pins allows users to connect to products that supports ATCBus easily. All in one ATCBus.

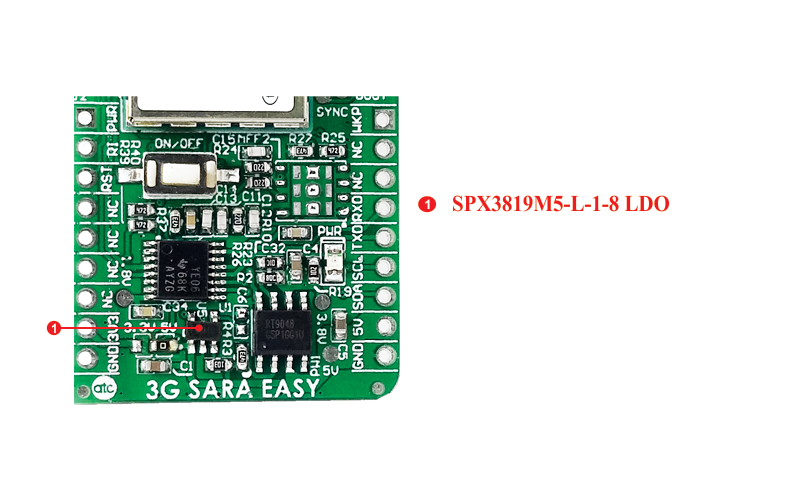

b. Power supply and ON/OFF module SARA U201

The SARA-U201 module has to be powered by a clean and stable power supply. Power supply for ATC-E06 Easy via ATCBus at two pins 5V and GND. This power will supply for power IC RT9048 of Ricktek to convert to 4.0V to supply for the SARA U201 module. This power provides up to 1.9 Amps and drop voltage when the load does not exceed 400mV.

Although the SARA-U201 is a low power device, the cellular network modules in general are notorious for their high-power consumption, so the 2A LDO had to be used

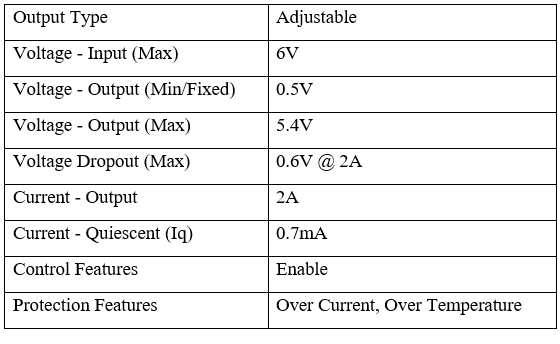

Some main features of power IC RT9048:

Default, SARA-U201 can swiched on after supply 5V@2A power at pin 5V of ATC-E06. The circuit is designed with a transistor to turns on SARA-U201 module via pin PWK of ATCBus. It is possible to POWER ON/ OFF SARA-U201 module in three methods:

  • Method 1: After module is powered off, press the ON / OFF button on the circuit and release about 2s to power on module.

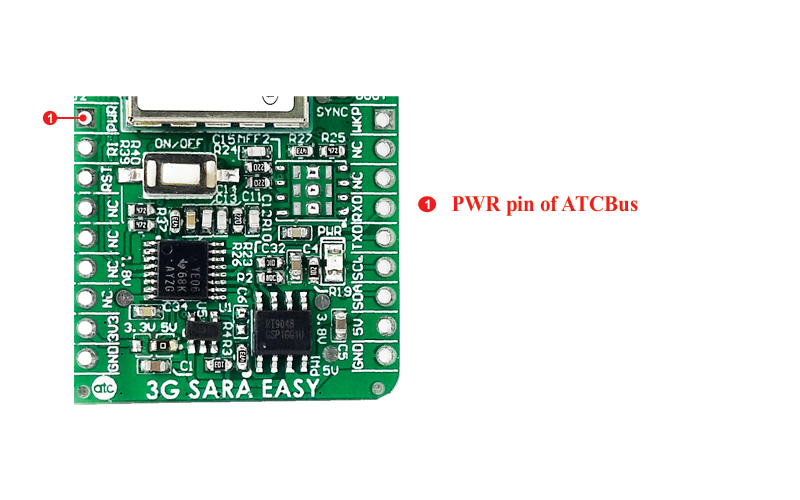

  • Method 2: Provide a high-level pulse for at least 2 second to the PWR pins of the ATCBus Socket, the SARA-U201 module will be powered on.



  • Method 3: Use AT+CPWROFF command to OFF module.



c. Logic level voltage selection

To communicate with external devices with logic 5V/3V, the board has a interface with 3.3V/5V logic voltage selection for user can choose depend their application. When manufacturing, the default logic voltage is 3.3V logic level.



ATC-E06 uses bidirection logic translator TXB0106PWR of Texas Instruments, it can use to convert logic level from 1.2~3.6V to 1.65~5.5V and bidirection with speed up to 100Mbps. Logic level communicate of SARA-U201 is 1.8V and level logic of microcontroller normal is 3.3V/5V, so voltage translator IC need to use to compatible signal level.

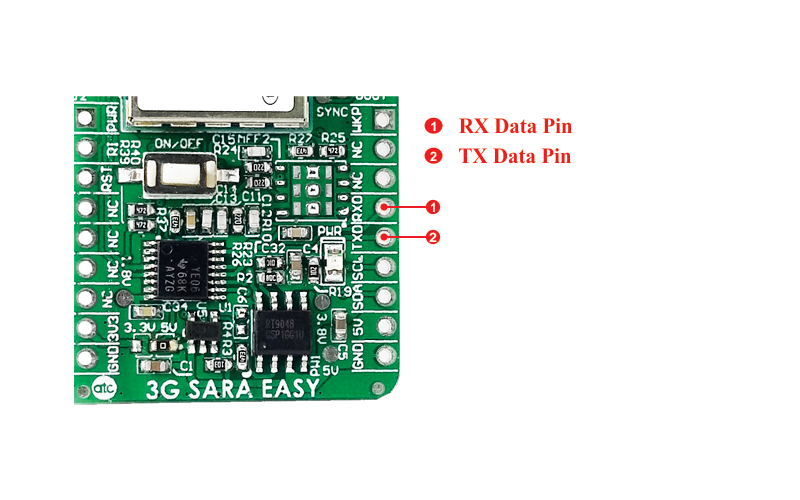

ATC-E06 supports UART to external device communicate with SARA-U201 module via AT command. UART interface supports baud rates from 2400 bps to 115.2 kbps and automatic baud rate detection. The default baud rates is 9600 kbps.

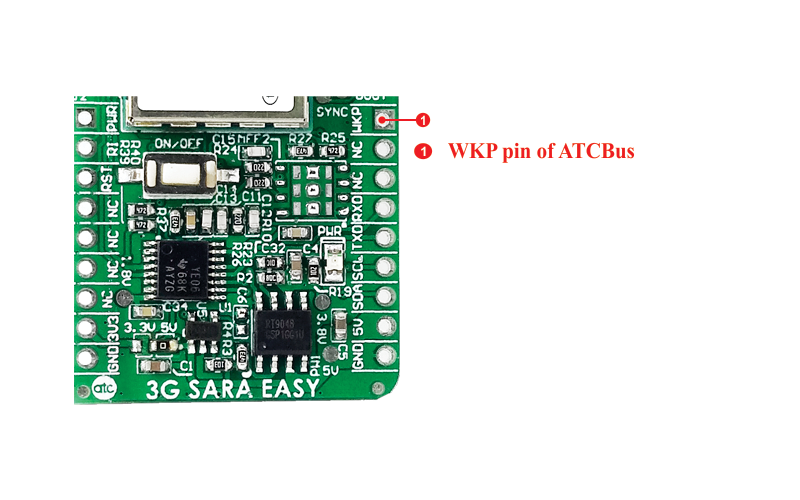

At default mode, SARA-U201 can’t communicate with external device via UART interface. So, to enable this function need to pull up WKP pin of ATC-E06 to high level logic. If  logic level communication is 3.3V, need to connect pin 3V3 of ATCBus to 3.3V.



How to change the communication voltage:

  • Remove the 0R resistor (size 0603) at the unwanted position.
  • Solder the 0R resistor (size 0603) to the desired position of 3.3V or 5V.

d. Audio and MIC port

SARA-U201 module offers extensive audio features, including half rate, full rate, enhanced full rate and adaptive multi-rate voice codecs, superior echo cancellation and noise reduction, multiple pre-programmed audio profiles, specialized hands-free algorithm, all configurable with the AT commands.

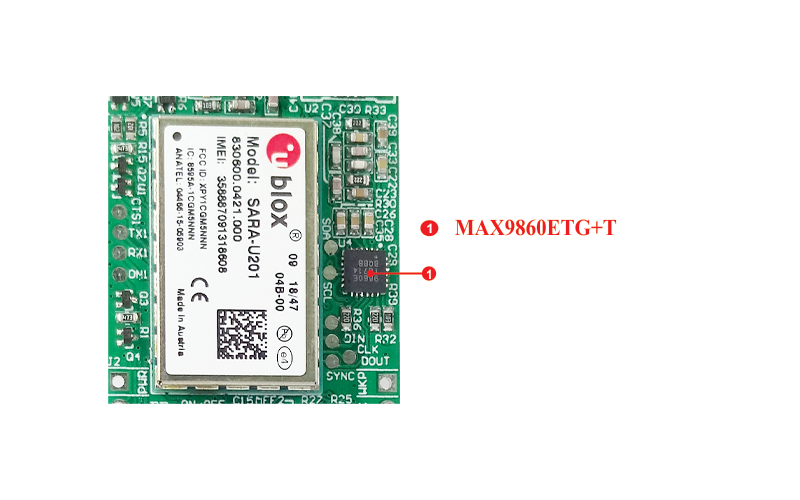

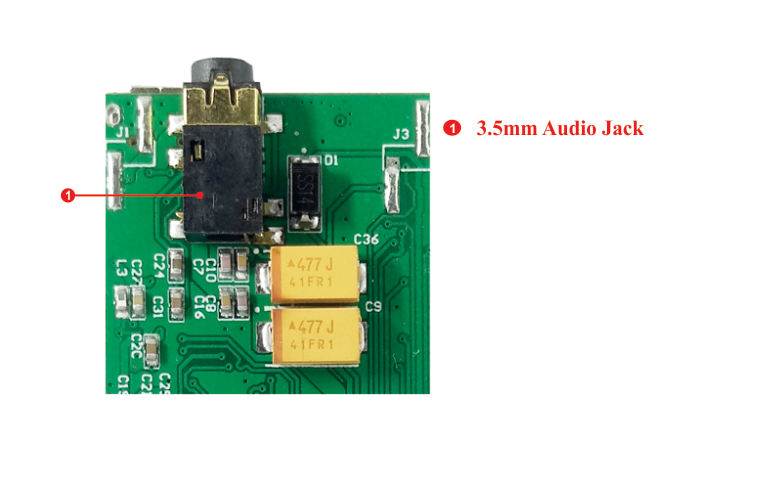

SARA U-201 offers the I2S interface, mainly used for digital audio. The MAX9860, a 16bit mono audio voice CODEC IC from Maxim Integrated, provides the 3G SARA click board with the voice communication. This IC uses the I2S and I2C interfaces to communicate with the SARA U-201 module. This IC provides a clean and audible analog interface for connecting the headset, with one audio output channel and one microphone input channel. The headset can be connected via the onboard 3.5mm audio jack

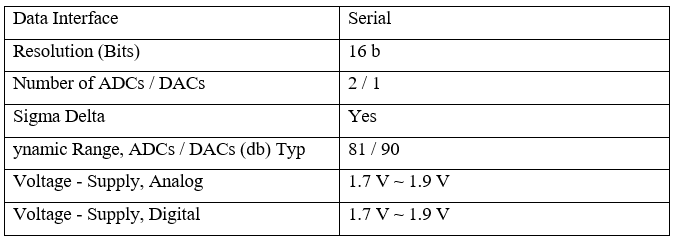

Some functions of MAX9860ETG+T:

e. Antenna GSM

Module SARA-U201 support for GSM band with 900/1800 Mhz and HSPA band with 800, 850, 900, 1900, 2100 Mhz with data rate up to 72Mbps. Module has 50 Ohm smd antenna pad, with functions for user can add some components to make own 3G/GSM/GPRS application.

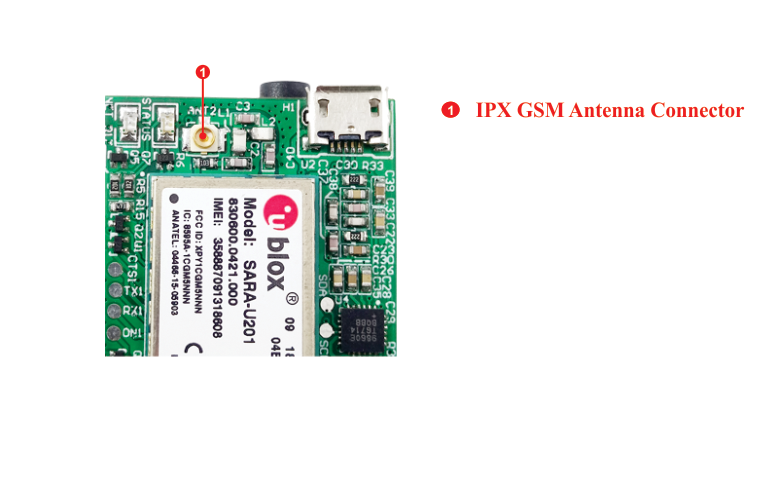

ATC-E06 supports SMD IPX connector antenna for users can connect to external 3G antenna and make for their applications.

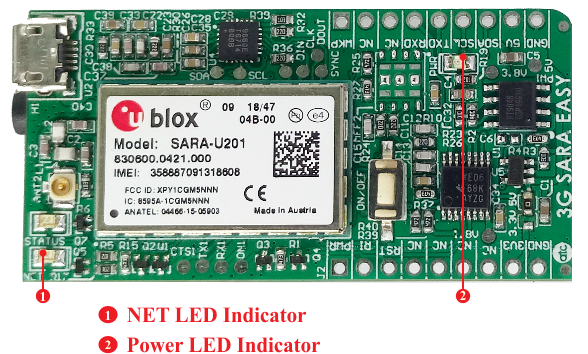

f. LED Indicator

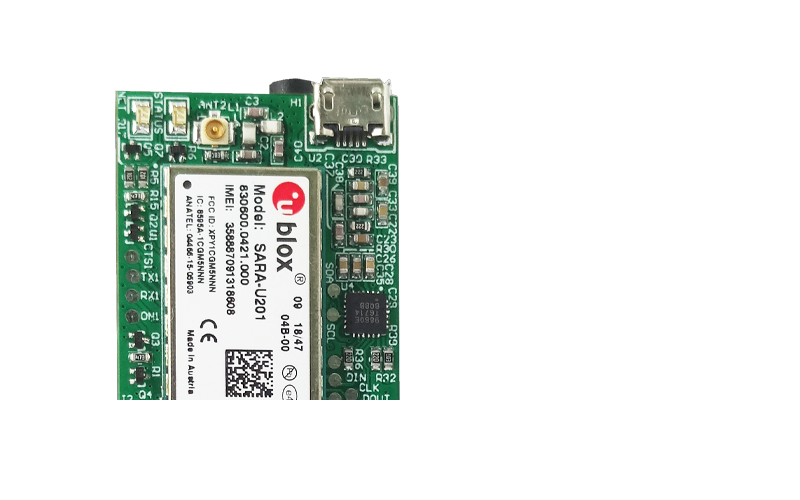

g. USB Interface

ATC-E06 is equipped with the micro USB connector of MUP. It allows the module to be configured by a personal computer (PC). U-blox company offers a software suite that can be used to configure the SARA-U201 module. User can download m-center software tool on Ublox website and use this tool to communicate with ATC-E06 via micro usb connector on board.

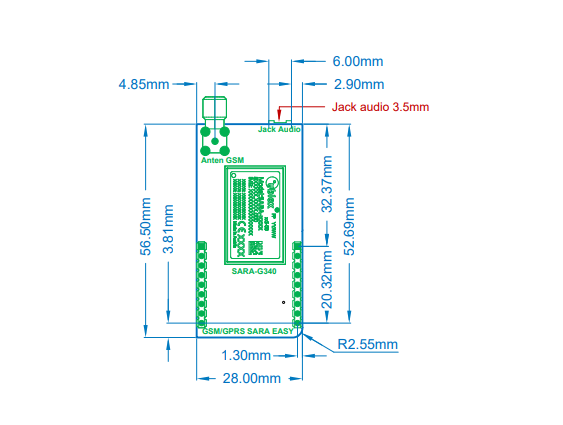

4. Dimensions
