GNSS NEO-8Q EASY

14320 Views

• NEO-8Q GPS module.
• L1C/A Band Receiver (1575.42 MHz)
• Protocols: NMEA 0183 V4.0, UBX, RTCM.
• GPS data interface via UART, compatible 3.3V and 5V.
• Update rate: Max navigation update rate 18hz
• Patch antenna integrate on board.
• ATCBus output Header.
• Battery backup integrate on board.

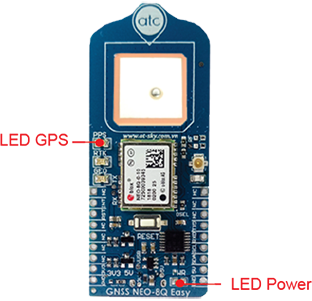

• Led shows GPS position update, frequency: 1Hz.
• Operating voltage: 3.3V.

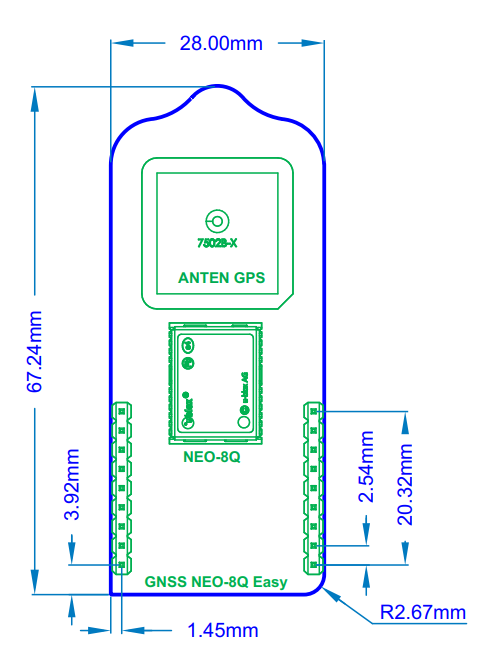

• Dimension: 28 x 67.11 mm.
• Support Design Library for Altium, Eagle, Orcad.

View Detail

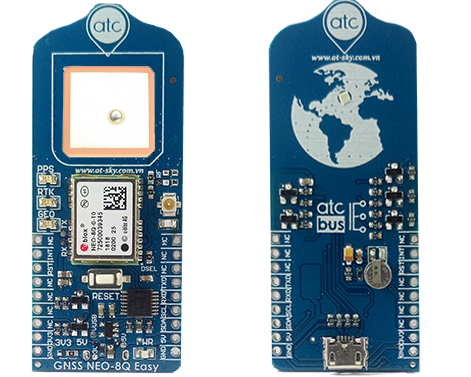

1. Introduction of NEO-8Q GPRS (ATC-E04 Easy )

ATC-E04 Easy is a product designed by AT-COM to provide users with integrated facilities that are interconnected into a network through ATCBus.

The board is powered by the Ublox NEO-8Q with features of GPS integrated in one module.

Module NEO-8Q is the latest GPS series, which delivers optimum performance in GPS receiver even in harsh environments. ATC-E04-NEO-8Q is full of features to provide you with ideas for location-based applications.

2. Schematic of ATC-E04

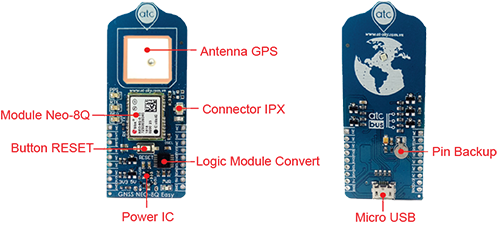

2. Feaure of NEO-8Q GPRS (ATC-E04 Easy )

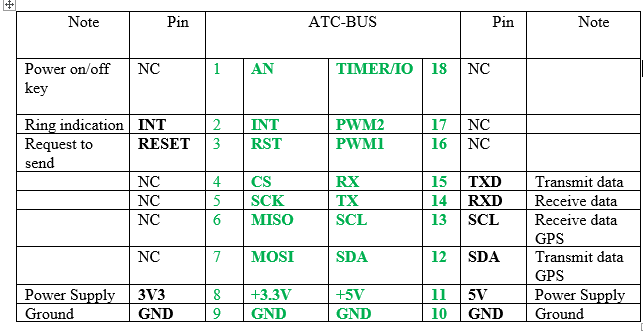

The ATCBus Socket with integrated pins allows users to connect to products that support ATCBus easily. All in one ATCBus.

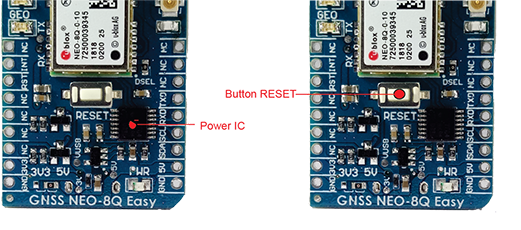

a. Power and reset module NEO-8Q

Power supply for ATC-E01-MC60 Easy via ATCBus at 5V and GND or 3.3V and GND.

If power supply at 5V, It will then pass the power IC conversion to 3.3V supply to the NEO-8Q module.
If power supply at 3.3V, It will provided directly to the NEO-8Q module.

This ensures a response up to 0.3Ampe and a drop in voltage when the load does not exceed 300mV.

The circuit is designed with a transistor reset NEO-8Q module. It is possible to reset NEO-8Q in two Methods:

Method 1: Press the reset button then hold for about 2 seconds, designed on the circuit.
Method 2: Provide a high-level pulse to the RST pin of ATCBus Socket, module NEO-8Q will be reset.

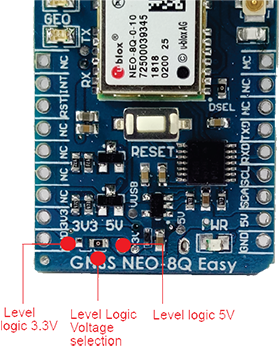

b. Select the communication voltage

To accommodate the level of external devices when communicating with the ATC-E04 module, the board has a custom designed user interface with a 3.3V/ 5V logic voltage rating for application. When manufacturing, the voltage rating will be used at the 3.3V logic level.

How to change the communication voltage:

Remove the 0R resistor (size 0603) in the unwanted position (face is at 3.3V).
Resist the 0R resistor (size 0603) to the desired position of 3.3V or 5V.

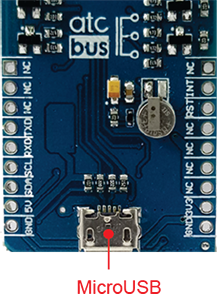

c. Micro USB port

Micro USB port for reading GPS data directly from NEO-8Q module and can be used for communication as an alternative to the UART. USB drivers can be down-loaded from the u-blox web site.

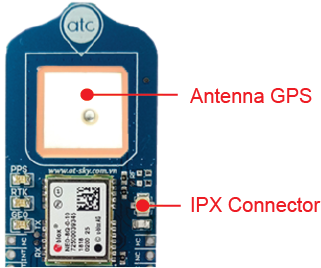

d. Antenna GPS
